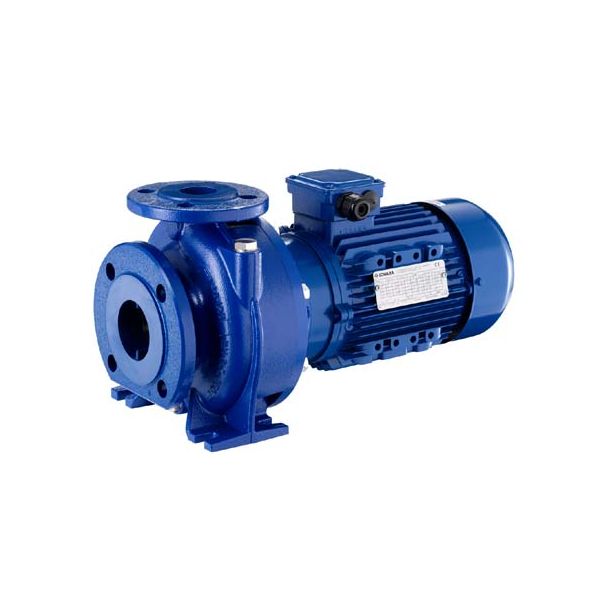

Lowara e-NSC 4 Pole End Suction Centrifugal Pumps

Lowara e-NSC end suction centrifugal pumps are the new and improved Lowara pump replacement to the FHE/FHS series. The Lowara e-NSC 4 pole centrifugal water pump runs at 1400 rpm compared to the Lowara e-NSC 2 pole end suction centrifugal water pump model that runs at 2800 rpm. Suitable for various applications that require constant or variable duty points in a cost saving operation, these horizontal end suction pumps are ideal for pressure boosting in commercial buildings, heating and ventilation systems, irrigation systems and fire fighting.

These end suction water pumps by Lowara have been redesigned and improved to meet the Commercial Building Services (CBS) requirements when it comes to better performance and energy saving. Equipped with interchangeable mechanical seals and highly efficient IE3 motors, these horizontal end suction centrifugal pumps have robust construction that can guarantee continuous operation without faults and easy maintenance. The Lowara e-NSC centrifugal water pumps are designed with a back pull-out configuration, eliminating the need to disconnect the pump body from the pipeline and reducing pump downtime.

Lowara e-NSC 4 pole end suction centrifugal pumps are truly versatile pumping solutions. Supplied as standard in cast iron casing and impeller, these centrifugal water pumps are also available in a wide range of materials, from bronze to duplex stainless steel, to match your exact requirements. In addition, the Lowara end suction pumps can handle a range of fluids due to their robust and reliable design and ability to be supplied with different mechanical seals compatible with the pumped fluid. The e-NSC end suction centrifugal water pumps are also available in the following constructions:
►Extended shaft (models listed above)
►Stub shaft (available on request)
►Bare shaft (available on request)
►Frame mounted (available on request)

Specifications
►Maximum liquid temperature: 120°C
►Delivery: Up to 650 m³/h
►IP55 Protection
►Insulation class: F

Materials
►Pump Body: Cast Iron
►Impeller: AISI 316L Stainless Steel
►Mechanical seal: carbon/silicon carbide/EPDM*

*standard version - Other seal materials available upon request

Please contact us for e-NSC models 065 - 300.

Whisper Pumps have been supplying Lowara pumps for over 25 years, meaning we are highly experienced in all models, and our team have expert product knowledge. If you are unsure about the end suction centrifugal pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
