Borehole Pump Cooling Shroud

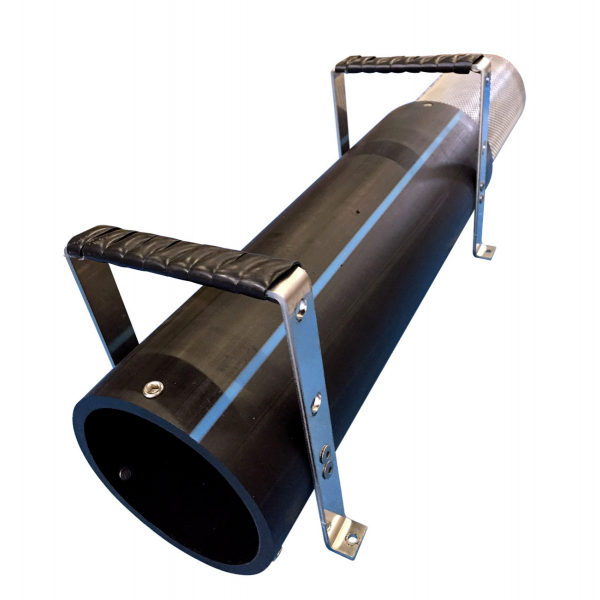

The KIOS cooling shroud / sleeve is the ideal solution for horizontal installations of borehole pumps. It ensures the proper cooling of the motor and has a filter to avoid blockage of the pump.

Starting at £210.24 £175.20

Grouped product items
Model	Size mm	SKU	RRP	Our Price (ex VAT)	Qty
Model: KIOS 1	Sizemm: 600 (L) x 180 (H) x 140 (W)	SKU: 3515-001	RRP: £219.00	Our Price: £210.24 £175.20
Model: KIOS 2	Sizemm: 900 (L) x 180 (H) x 140 (W)	SKU: 3515-002	RRP: £270.00	Our Price: £259.20 £216.00

Details

The KIOS cooling shroud / sleeve is the ideal solution for horizontal installations of borehole pumps. It ensures the proper cooling of the motor and has a filter to avoid blockage of the pump.

Specifications
►External diameter: 125 mm
►Internal diameter: 110.2 mm

KIOS 1 is suitable for following powers:
►2-wires single phase motors: up to 1.1 kW
►PSC single phase oil-cooled motors: up to 1.5 kW
►PSC single phase Franklin motors: up to 2.2 kW
►Three phase motors: up to 3 kW

KIOS 2 is suitable for following powers:
►PSC single phase oil-cooled motors: 2.2 kW
►Three phase motors: from 4 kW to 7.5 kW

KIOS Kit Installation Diagram
