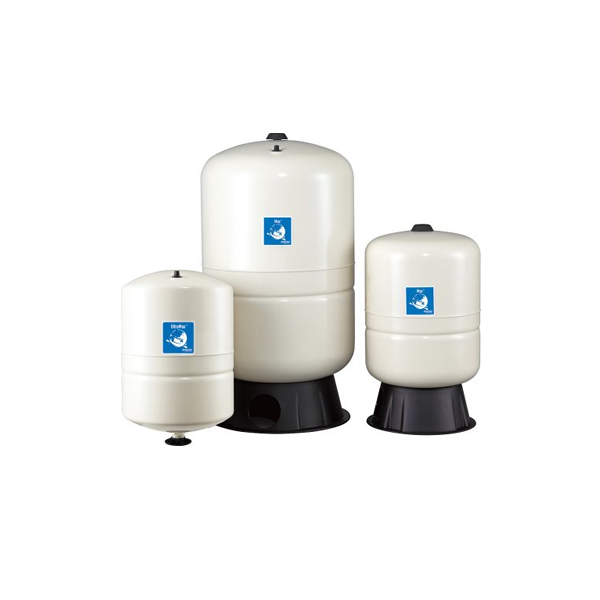

GWS (Ultra)Max 16 Bar & 25 Bar Expansion Vessels

GWS (Ultra)Max™ potable water pressure tanks are suitable for high pressure applications including high-rise buildings, high pressure flushing, large scale irrigation systems and industrial uses.

POA

Grouped product items
Model	Outlet	SKU	Our Price (ex VAT)
Model: 8 Litre Inline - Max 16 Bar	Outlet: 1"	SKU: 2769-091	Our Price: Price on Application
Model: 12 Litre Inline - Max 16 Bar	Outlet: 1"	SKU: 2769-092	Our Price: Price on Application
Model: 18 Litre Inline - Max 16 Bar	Outlet: 1"	SKU: 2769-093	Our Price: Price on Application
Model: 24 Litre Inline - Max 16 Bar	Outlet: 1"	SKU: 2769-094	Our Price: Price on Application
Model: 60 Litre Vertical - Max 16 Bar	Outlet: 1"	SKU: 2769-096	Our Price: Price on Application
Model: 80 Litre Vertical - Max 16 Bar	Outlet: 1"	SKU: 2769-097	Our Price: Price on Application
Model: 100 Litre Vertical - Max 16 Bar	Outlet: 1"	SKU: 2769-098	Our Price: Price on Application
Model: 8 Litre Inline - UltraMax 25 Bar	Outlet: 1"	SKU: 2769-099	Our Price: Price on Application
Model: 24 Litre Inline - UltraMax 25 Bar	Outlet: 1"	SKU: 2769-100	Our Price: Price on Application
Model: 100 Litre Vertical - UltraMax 25 Bar	Outlet: 1"	SKU: 2769-101	Our Price: Price on Application

Details

GWS (Ultra)Max™ potable water pressure tanks are suitable for high pressure applications including high-rise buildings, high pressure flushing, large scale irrigation systems and industrial uses.

(Ultra)Max™ vessels are fixed single membrane pressure vessels constructed with a virgin polypropylene liner combined with a high grade butyl diaphragm. Water enters the pressure tank through the corrosion resistant stainless steel water connection.

The almond painted, two-part polyurethane exterior over an epoxy undercoating provides excellent protection from UV and salt spray.

GWS expansion vessels are quality tested at several stages during production to ensure the structural integrity of every tank which guarantees a high quality, reliable vessel.

Inline vessels have no mounting brackets
Vertical vessels have a circular plastic base

Specifications
►Maximum liquid temperature: 90°C
►Maximum working pressure: 16 bar (232psi) OR 25 bar (362psi)
►Maintenance free
►5 Year Warranty
►Suitable for potable water
►WRAS Approved
