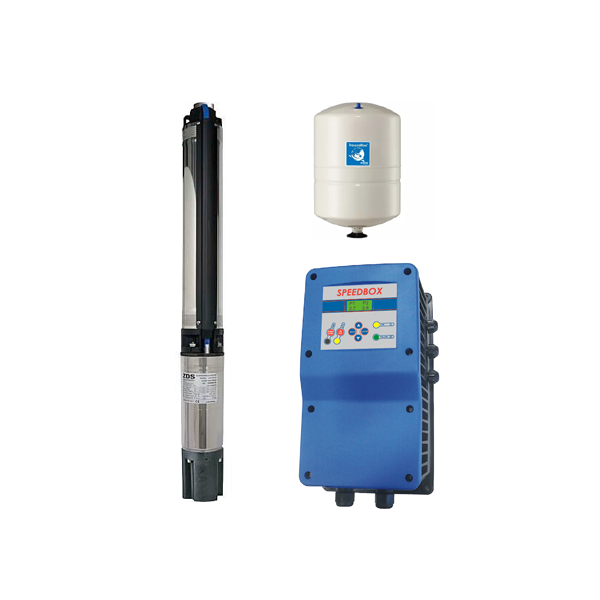

Complete Borehole Pump Kit

Our borehole pump kit is supplied complete with all the components you'll need to efficiently extract water from a 4" borehole.

This pre-packaged borehole water pump kit includes:
►230V electric ZDJet borehole pump & motor
►Speedbox variable speed drive which also offers dry run protection
►24 Litre PressureWave expansion vessel
►Pre-fitted with 60 metre drop cable (Extra cable available on request)
►Pre-fitted with 3 pin plug

We handpicked the high quality, Italian made ZDJet borehole pump as part of our pre-packaged kit as it is one of the most reliable and long lasting borehole pumps on the market. ZDJet borehole pumps are suitable for applications including water supply, sprinkler irrigation, pressure boosting and geothermal systems.

To ensure damage free handling of high sand content (up to 120g/m3) and where mineral deposits such as iron or manganese are present, the ZDS borehole pumps have been designed with self-cleaning, technopolymer impellers. Thanks to the pump body’s AISI 304 Stainless Steel construction, they are constructed specifically for anti-corrosion.

ZDJET submersible borehole water pumps benefit from a low starting-torque, guaranteeing long life and reliability even in conditions where there is a significant voltage drop from the mains power supply. Supplied with an integrated start/run capacity and pre-fitted 60M power cable with a thick cover to protect wires from damage, ZDS pumps are easy to run, install and maintain.

The Coelbo Speedbox variable speed drive is an inverter for borehole pumps providing a consistent pressure where demand on the water supply differs, which in turn provides energy savings and less mechanical stress on the pump. It is wall mounted for convenience, easy to install and has integrated intelligent software allowing an easy and intuitive configuration through a multi-function LCD screen.

Speedbox borehole pump control boxes offer endless benefits for your system including dry run protection with automatic re-start after dry run shutdown.

Complete Borehole Pump Kit Specifications:
►Maximum sand content: 120g/m3
►Maximum liquid temperature: 35°C
►Flow rates up to 70lpm (largest flow model)
►Head up to 106m (highest pressure model)
►Designed for 4inch boreholes
►Stainless steel casing for anti-corrosion
►Water pump inverter variable speed drive
►Dry run protection with automatic re-start
►Adjustable pressure

Materials
►Pump body: AISI 304 Stainless Steel
►Motor bracket and pump outlet: Technopolymer
►Impeller: Technopolymer

If you are unsure on the borehole water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
