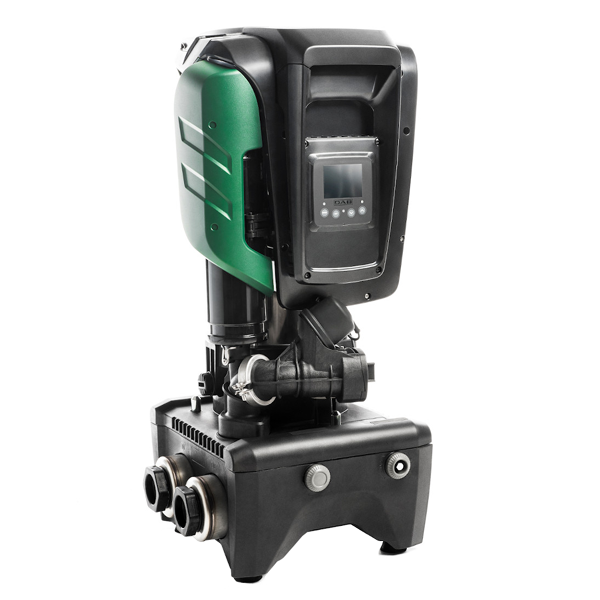

DAB ESyBox MAX Water Pressure Booster Pump System

DAB ESYBOX MAX Water Pressure Booster System is an integrated pumping system for water pressurisation, ideal for residential and commercial applications. ESYBOX MAX booster pump is a ready to use unit that requires no additional components for its installation. The unit has a self-priming multistage pump, pressure and flow sensors, a high-resolution LCD display and an integrated 2-litre expansion vessel. This allows quick and hassle-free installation.

ESYBOX MAX water pressure booster pump set by DAB is built with modular elements that allow different installation configurations (single, double, triple or quadruple system) for applications requiring more powerful water pressure boosting pump systems. Single pump configurations are listed above, contact us on 01777 871100 for multiple pump configuration options.

Supplied with a variable frequency drive that adjusts the flow according to the demand, the ESYBOX MAX water pressure booster pump provides constant water pressure without surge. As a result, this water pressure booster set is more energy-efficient than other conventional units. The water pressure booster system also benefits from quieter operation compared to traditional water booster sets thanks to the water-cooled motor, protective casings in sound-deadening ABS, vibration-damping feet and the inverter electronics that regulate the motor revolutions based on the required pressure and flow rate.

DAB ESYBOX MAX water pressure booster system is WRAS approved and suitable for clean water, free from solids or abrasive substances. Typically used for residential and commercial applications for increasing water pressure to showers, taps and appliances, this pressure boosting pump can cover the needs of medium/large buildings (even over 14 floors). The beauty of the DAB EASY BOX MAX unit is that it has a built-in Wi-Fi module and can be remotely monitored via the DConnect online application. The DConnect applications allow you to use your smartphone to connect directly to the pump and remotely control and manage system pressure, alarms and check the instantaneous and historical consumption (requires subscription).

The EASYBOX MAX cannot be connected directly to the mains water supply; it must be connected to a suitable break tank. So if you're looking for a tank to store your water before it's pumped, we supply a range of water tanks which are suitable for potable water.

Here are just a few of the top benefits of the DAB Easy Box Max:
►Versatile pumping solution – This water pressure booster set is built with modular elements that allow different installation configurations, including single, double, triple or quadruple systems.
►Virtually silent – Thanks to the innovative pump design and water-cooled motor, this unit benefits from quieter operation compared to traditional water booster sets
►Energy Efficient - ESYBOX MAX water pressure pump comes with a variable frequency drive that automatically adjusts the flow according to the demand, resulting in more efficient operation and energy savings.
►Easy to install, maintain and operate – Supplied as a ready-to-use integrated pumping system, this DAB booster pump also benefits from compact design and the ability to monitor and control remotely via the DConnect application.

Specifications
►Maximum liquid temperature: +50°C
►Maximum suction depth: 8 metres
►Maximum inlet pressure: 5 bar
►Constant pressure range: 1-12 bar (3 bar by default)
►Motor protection class: IP X5
►Motor insulation class: F
►Impeller material: Technopolymer

Please note: The DConnect is an additional service that requires a subscription. Please contact us on 01777 871100 for more information.

As a DAB pump supplier over 25 years, we are highly experienced in all models and our team have expert product knowledge. If you are unsure on the DAB booster pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
