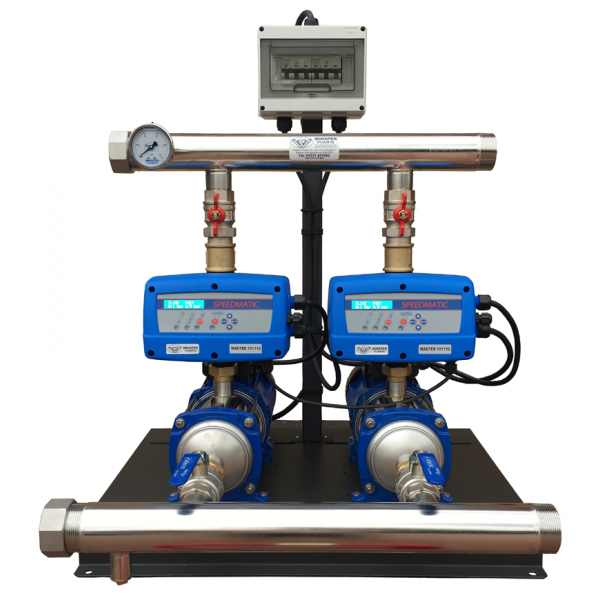

Hydroset Twin Pump Water Pressure Booster Sets

The Hydroset twin water pressure booster sets are self priming Lowara booster pumps controlled by energy efficient Speedmatic inverter drives to constantly adjust the speed of the pump as demand on the water supply fluctuates to provide constant pressure.

Grouped product items
Model	Voltage	Motor	Inlet	Outlet	Max. Flow	Max. Head	SKU	RRP	Our Price (ex VAT)
Model: Hydroset Twin 3-9	Voltage: 230V	Motor: 0.9+0.9 kW	Inlet: 2"	Outlet: 2"	Maxflow: 160 l/min	Maxhead: 68 m	SKU: 819-080	RRP: £3,800.00	Our Price: £3,192.00 £2,660.00
Model: Hydroset Twin 5-10	Voltage: 230V	Motor: 1.5+1.5 kW	Inlet: 2"	Outlet: 2"	Maxflow: 260 l/min	Maxhead: 75 m	SKU: 819-083	RRP: £4,260.00	Our Price: £3,578.40 £2,982.00
Model: Hydroset Twin 5-12	Voltage: 230V	Motor: 2.2+2.2 kW	Inlet: 2"	Outlet: 2"	Maxflow: 260 l/min	Maxhead: 97 m	SKU: 819-086	RRP: £4,600.00	Our Price: £3,864.00 £3,220.00
Model: Hydroset Twin 10-6	Voltage: 230V	Motor: 2.2+2.2 kW	Inlet: 2"	Outlet: 2"	Maxflow: 500 l/min	Maxhead: 72 m	SKU: 819-089	RRP: £4,700.00	Our Price: £3,948.00 £3,290.00
Model: Hydroset Twin 3-9T	Voltage: 400V	Motor: 0.9+0.9 kW	Inlet: 2"	Outlet: 2"	Maxflow: 160 l/min	Maxhead: 68 m	SKU: 819-090	RRP: £4,250.00	Our Price: £3,570.00 £2,975.00
Model: Hydroset Twin 5-10T	Voltage: 400V	Motor: 1.5+1.5 kW	Inlet: 2"	Outlet: 2"	Maxflow: 260 l/min	Maxhead: 75 m	SKU: 819-093	RRP: £4,700.00	Our Price: £3,948.00 £3,290.00
Model: Hydroset Twin 5-12T	Voltage: 400V	Motor: 2.2+2.2 kW	Inlet: 2"	Outlet: 2"	Maxflow: 260 l/min	Maxhead: 97 m	SKU: 819-096	RRP: £4,930.00	Our Price: £4,141.20 £3,451.00
Model: Hydroset Twin 10-6T	Voltage: 400V	Motor: 2.2+2.2 kW	Inlet: 2"	Outlet: 2"	Maxflow: 500 l/min	Maxhead: 72 m	SKU: 819-099	RRP: £4,980.00	Our Price: £4,183.20 £3,486.00

Details

These twin pump water booster sets provide a large flow rate making them suitable for larger water supply applications such as shower blocks, hotels, housing estates, large farms and factories. Their twin design can be used for duty standby, where this is a back up pump incase of pump failure, and duty assist, to help meet a large increase in demand on the water supply.

Thanks to the integration of the Speedmatic inverter driver, these water pressure boosting pumps are able to provide the user with constant water pressure with up to 60% energy savings compared to conventional units.

An additional benefit of the Hydroset water booster set design is its dry run protection. In the event of the water supply failing during operation, the pump automatically shuts down to prevent damage to the pump and once the water supply is restored, automatically restarts

Specifications
►Maximum liquid temperature: 40°C
►Maximum working pressure: 15 bar
►Speedmatic inverter drive for variable speed
►Stainless steel manifolds
►IE3 efficency class electric motors
►Wras approved components
►Nickel plated brass lever valves

Advantages
►Constant pressure regardless of demand
►Up to 60% energy saving over conventional unit’s
►Dry run protection with auto re-start
►Very quiet operation
►Strong and compact construction
►Factory tested and ready to use
►Plug and go installation

Applications
►Hotels
►Shower blocks
►Industrial plants
►Housing estates
►Apartments
►Irrigation
►Large farms

As a leading water pressure booster set supplier, if you are unsure on the pressure boosting pump model you require we can help. Please contact our technical sales team today on 01777 871100 for free, expert advice.
