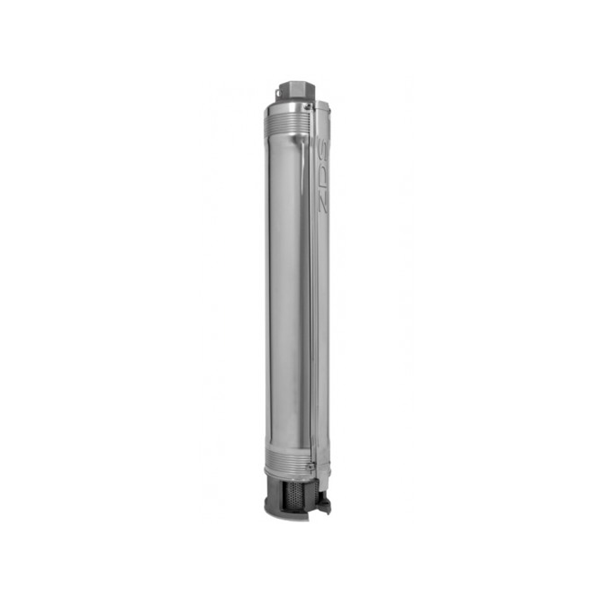

ZDS QS4X 4" Borehole Pumps

The ZDS QS4X 4” 4N borehole pumps are commonly used for extracting water from 4" wells and boreholes for water supply, sprinkler irrigation, pressure boosting and geothermal systems.

Please note: Motors for these submersible borehole water pumps must be purchased separately.

Grouped product items
Model Motor Outlet Max. Flow Max. Head SKU RRP Our Price (ex VAT)
Model: QS4X. 1-12 Motor: 0.37 kW (required) Outlet: 1-1/4" Maxflow: 25 l/min Maxhead: 75 m SKU: 3513-192 RRP: £363.00 Our Price:
£348.48 £290.40
Model: QS4X. 1-18 Motor: 0.55 kW (required) Outlet: 1-1/4" Maxflow: 25 l/min Maxhead: 113 m SKU: 3513-193 RRP: £414.00 Our Price:
£397.44 £331.20
Model: QS4X. 1-25 Motor: 0.75 kW (required) Outlet: 1-1/4" Maxflow: 25 l/min Maxhead: 157 m SKU: 3513-194 RRP: £500.00 Our Price:
£480.00 £400.00
Model: QS4X. 1-36 Motor: 1.1 kW (required) Outlet: 1-1/4" Maxflow: 25 l/min Maxhead: 226 m SKU: 3513-195 RRP: £614.00 Our Price:
£589.44 £491.20
Model: QS4X. 2-8 Motor: 0.37 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 51 m SKU: 3513-200 RRP: £324.00 Our Price:
£311.04 £259.20
Model: QS4X. 2-12 Motor: 0.55 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 76.8 m SKU: 3513-201 RRP: £376.00 Our Price:
£360.96 £300.80
Model: QS4X. 2-16 Motor: 0.75 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 102.4 m SKU: 3513-202 RRP: £401.00 Our Price:
£384.96 £320.80
Model: QS4X. 2-24 Motor: 1.10 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 153.6 m SKU: 3513-203 RRP: £499.00 Our Price:
£479.04 £399.20
Model: QS4X. 2-32 Motor: 1.5 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 204 m SKU: 3513-204 RRP: £581.00 Our Price:
£557.76 £464.80
Model: QS4X. 2-40* Motor: 2.2 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 255 m SKU: 3513-205 RRP: £732.00 Our Price:
£702.72 £585.60
Model: QS4X. 2-48* Motor: 2.2 kW (required) Outlet: 1-1/4" Maxflow: 40 l/min Maxhead: 305 m SKU: 3513-206 RRP: £899.00 Our Price:
£863.04 £719.20
Model: QS4X. 3-9 Motor: 0.55 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 50 m SKU: 3513-207 RRP: £349.00 Our Price:
£335.04 £279.20
Model: QS4X. 3-13 Motor: 0.75 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 72.2 m SKU: 3513-208 RRP: £401.00 Our Price:
£384.96 £320.80
Model: QS4X. 3-19 Motor: 1.10 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 105.5 m SKU: 3513-209 RRP: £558.00 Our Price:
£535.68 £446.40
Model: QS4X. 3-25 Motor: 1.50 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 138.8 m SKU: 3513-210 RRP: £660.00 Our Price:
£633.60 £528.00
Model: QS4X. 3-32 Motor: 2.20 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 177.6 m SKU: 3513-211 RRP: £900.00 Our Price:
£864.00 £720.00
Model: QS4X. 3-39* Motor: 2.20 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 215 m SKU: 3513-212 RRP: £1,047.00 Our Price:
£1,005.12 £837.60
Model: QS4X. 3-45* Motor: 3 kW (required) Outlet: 1-1/4" Maxflow: 70 l/min Maxhead: 250 m SKU: 3513-213 RRP: £1,149.00 Our Price:
£1,103.04 £919.20
Model: QS4X. 5-8 Motor: 0.75 kW (required) Outlet: 1-1/4" Maxflow: 100 l/min Maxhead: 50 m SKU: 3513-215 RRP: £345.00 Our Price:
£331.20 £276.00
Model: QS4X. 5-13 Motor: 1.10 kW (required) Outlet: 1-1/4" Maxflow: 100 l/min Maxhead: 79.7 m SKU: 3513-216 RRP: £414.00 Our Price:
£397.44 £331.20
Model: QS4X. 5-17 Motor: 1.50 kW (required) Outlet: 1-1/4" Maxflow: 100 l/min Maxhead: 104.3 m SKU: 3513-217 RRP: £470.00 Our Price:
£451.20 £376.00
Model: QS4X. 5-21 Motor: 2.20 kW (required) Outlet: 1-1/4" Maxflow: 100 l/min Maxhead: 128.8 m SKU: 3513-218 RRP: £532.00 Our Price:
£510.72 £425.60
Model: QS4X. 8-8 Motor: 1.10 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 51.2 m SKU: 3513-223 RRP: £387.00 Our Price:
£371.52 £309.60
Model: QS4X. 8-12 Motor: 1.50 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 76.8 m SKU: 3513-224 RRP: £456.00 Our Price:
£437.76 £364.80
Model: QS4X. 8-17 Motor: 2.20 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 108.8 m SKU: 3513-225 RRP: £581.00 Our Price:
£557.76 £464.80
Model: QS4X. 8-20* Motor: 3.00 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 128 m SKU: 3513-226 RRP: £627.00 Our Price:
£601.92 £501.60
Model: QS4X. 8-23 Motor: 3.00 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 147 m SKU: 3513-227 RRP: £677.00 Our Price:
£649.92 £541.60
Model: QS4X. 8-27* Motor: 4.00 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 172 m SKU: 3513-228 RRP: £902.00 Our Price:
£865.92 £721.60
Model: QS4X. 8-31* Motor: 4.00 kW (required) Outlet: 2" Maxflow: 190 l/min Maxhead: 198 m SKU: 3513-229 RRP: £971.00 Our Price:
£932.16 £776.80
Model: QS4X. 10-08 Motor: 1.5 kW (required) Outlet: 2" Maxflow: 250 l/min Maxhead: 48.2 m SKU: 3513-232 RRP: £394.00 Our Price:
£378.24 £315.20
Model: QS4X. 10-12 Motor: 2.20 kW (required) Outlet: 2" Maxflow: 250 l/min Maxhead: 72.3 m SKU: 3513-233 RRP: £462.00 Our Price:
£443.52 £369.60
Model: QS4X. 10-17 Motor: 3.00 kW (required) Outlet: 2" Maxflow: 250 l/min Maxhead: 102.4 m SKU: 3513-234 RRP: £582.00 Our Price:
£558.72 £465.60
Model: QS4X. 10-23 Motor: 4.00 kW (required) Outlet: 2" Maxflow: 250 l/min Maxhead: 138.6 m SKU: 3513-235 RRP: £760.00 Our Price:
£729.60 £608.00

ZDS QS4X 4” borehole pumps are designed for the pumping of water from 4” boreholes and wells. These high quality, Italian made submersible borehole water pumps are suitable for applications including water supply, sprinkler irrigation, pressure boosting and geothermal systems.

To ensure damage free handling of high sand content (up to 120g/m3) and where mineral deposits such as iron or manganese are present, the ZDS borehole pumps have been designed with self-cleaning, technopolymer impellers. Thanks to the pump body’s AISI 304 Stainless Steel construction, they are constructed specifically for anti-corrosion.

ZDS QS4X submersible borehole water pumps have a low starting-torque, guaranteeing long life and reliable operation even where a significant voltage drop from the mains power supply is experienced. Supplied with a thick stainless cover cable to protect wires from damage during installation, ZDS pumps are simple to install and maintain.

These ZDS pumps are supplied without motor and must be purchased separately. As an experienced borehole pump supplier, we recommend using a Franklin® Electric motor to power your QS4X submersible borehole water pump – see table above for required kW or contact us for advice. Franklin pump motors are highly efficient which keep your running costs down and have a protective hermetically sealed stator and anti-track, self-healing stator resin to prevent motor burn out.

For easier and more automated control over your borehole/well water supply and protection of the pump against things like dry running, overload and system pressure changes, we recommend looking at borehole pump control boxes.

ZDS QS4X Specifications
►Maximum sand content: 120g/m3
►Maximum liquid temperature: 30°C
►Maximum immersion depth: 350m (when used with a water filled motor)
►Flow rates up to 250lpm (largest flow model)
►Head up to 255m (highest pressure model)
►Designed for 4inch boreholes
►Stainless steel casing for anti-corrosion
►Supplied without motor

Materials
►Pump body: AISI 304 Stainless Steel
►Impeller: Technopolymer

Please note: These ZDS 4” borehole pump models are supplied without motor. Motor must be purchased separately – see Franklin Electric submersible motors here.
Any models marked with a *askerisk are on a 2-4 week lead time as they're not stocked in our UK warehouse.


As a longstanding ZDS pumps supplier, Whisper Pumps are highly experienced in all models. If you are unsure on the borehole water pump model you require, please contact our technical sales team today on 01777 871100 for free, expert advice.
